At M3 Extrusion, we manufacture co-extruded PVC profiles designed for industrial applications. These profiles are produced according to technical drawings and cross-section designs, ensuring consistent dimensions for repeat manufacturing and bulk production.
What Are PVC Co-Extrusion Profiles?
PVC co-extrusion profiles are plastic extrusion components manufactured by processing multiple PVC materials together in a single production step. During the PVC co-extrusion process, two or more PVC compounds pass through a shared extrusion die and merge to form one continuous profile structure. Each material layer is designed to perform a specific function within the profile.
For example, rigid PVC sections may provide structural strength, while flexible PVC layers can function as sealing or cushioning elements. In some designs, coloured PVC layers are also used for surface identification or additional protection. Because these materials bond together during the extrusion process, the final co-extruded PVC profile becomes a durable single component that combines multiple functional properties within one structure.

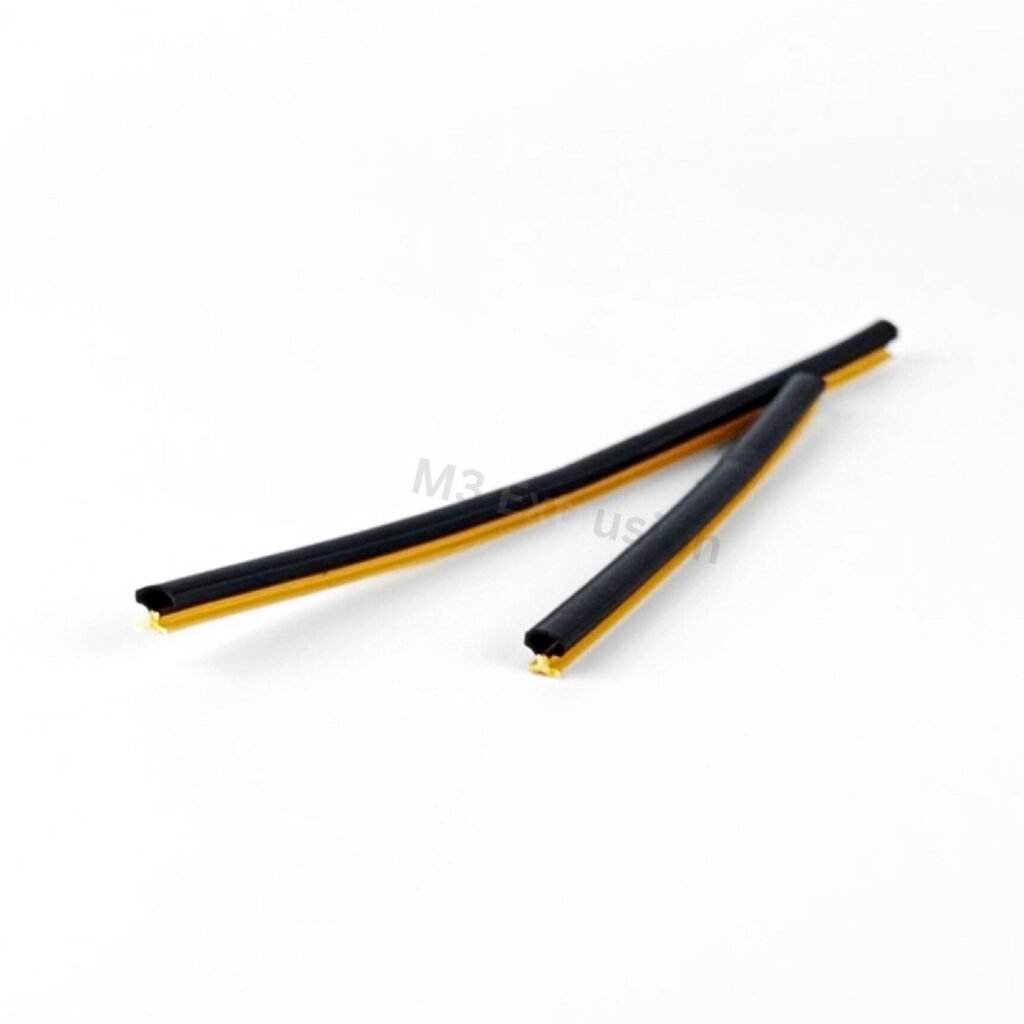

PVC Co-Extruded Profiles
PVC co-extruded profiles allow manufacturers to combine material characteristics within one profile design. This approach helps reduce assembly steps and improves long-term performance in industrial products.
Typical profile features may include:
- rigid structural sections
- flexible sealing components
- dual-colour profile structures
- protective surface layers
These profiles are commonly used where both strength and flexibility are required within the same plastic component.
Why Choose Our PVC Co-Extrusion Profiles?
Not all plastic profiles are designed to perform multiple functions within a single component. Many industrial systems require profiles that combine structural strength, flexibility, and reliable long-term performance. With more than 13 years of experience in custom plastic extrusion, M3 Extrusion manufactures PVC co-extrusion profiles developed for consistent industrial production.
Our plastic co-extrusion capability allows different PVC materials to be processed together in one profile. This makes it possible to combine rigid and flexible PVC sections within the same extrusion while maintaining accurate cross-section dimensions and stable profile geometry. Many of these solutions are produced as custom plastic extrusion profiles to match specific product designs and manufacturing requirements.
The result is a co-extruded PVC profile that supports repeat manufacturing and bulk supply requirements. These profiles are commonly used in equipment assemblies, refrigeration systems, glazing structures, and other applications where consistent component performance is required.
What Makes Our PVC Co-Extrusion Profiles Reliable?
Our co-extruded PVC profiles are manufactured using controlled extrusion processes to ensure durability and dimensional stability.
Key characteristics include:
- strong bonding between multiple PVC materials
- stable profile dimensions for repeat manufacturing
- resistance to environmental exposure
- durable profile structure for long-term use
- availability in custom colours, sizes, and cross-sections
Each production batch undergoes inspection to ensure consistent extrusion performance and profile accuracy.
Plastic Co-Extrusion Manufacturing Process
Producing PVC co-extrusion profiles requires controlled material flow, stable extrusion temperature, and accurate tooling. Each stage of the process is important to ensure that the final co-extruded PVC profile maintains the correct shape, bonding, and performance in use.
The general manufacturing process includes:

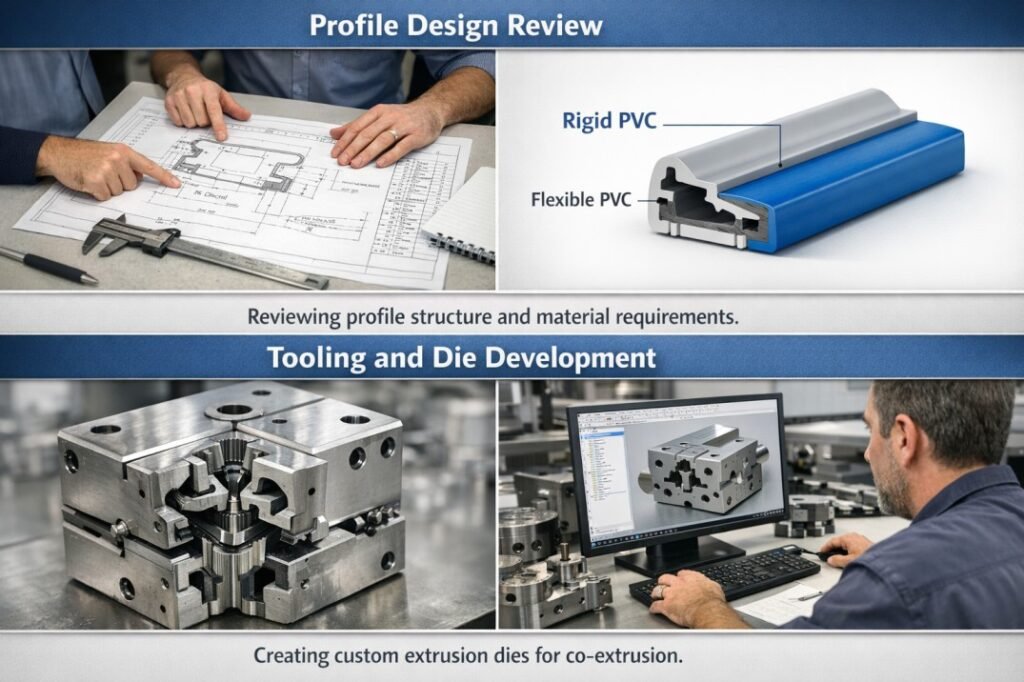

- Profile Design Review
Technical drawings and application requirements are reviewed to understand the profile structure, dimensions, and material combination. This step helps define where rigid and flexible sections are required within the same profile. - Tooling and Die Development
Custom extrusion dies are developed based on the approved design. The die is designed to allow multiple PVC materials to flow together in a controlled manner and form the required cross section.

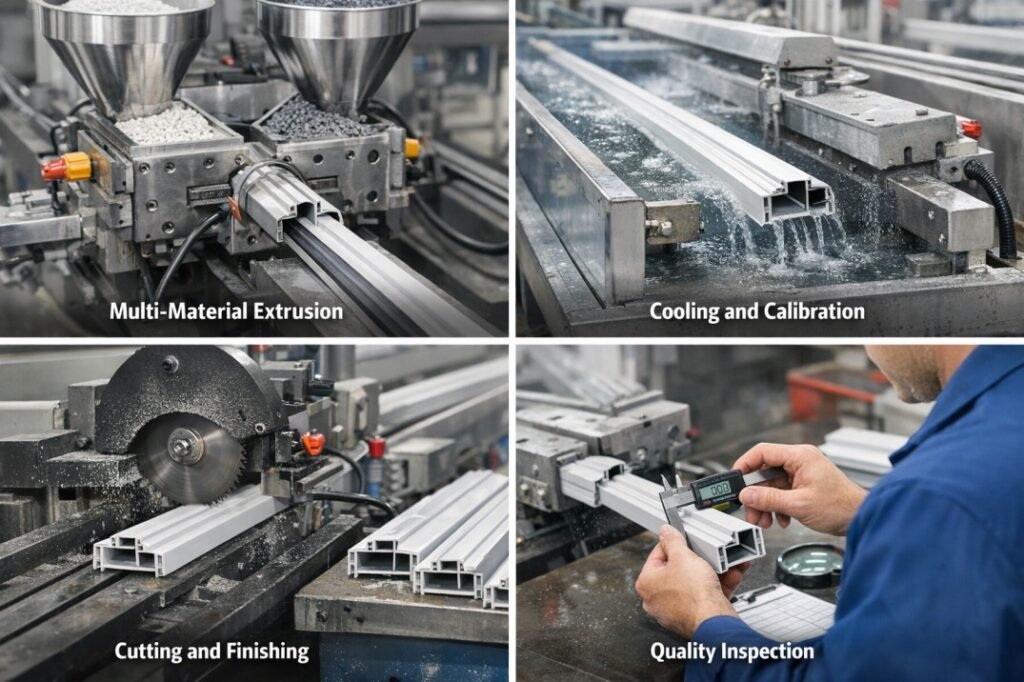

- Multi-Material Extrusion
Separate extruders process different PVC compounds, such as rigid PVC and flexible PVC. These materials are heated and pushed through a shared die where they merge and form a single continuous profile. - Cooling and Calibration
After extrusion, the profile passes through a cooling system to stabilise its shape. Calibration ensures that the dimensions remain consistent and match the required specifications. - Cutting and Finishing
The continuous profile is cut into required lengths based on production needs. Any necessary finishing is done to ensure the profile is ready for use in assembly systems. - Quality Inspection
Each batch is checked for dimensional accuracy, surface finish, and proper bonding between material layers. This ensures consistency across production and reliable performance in application.

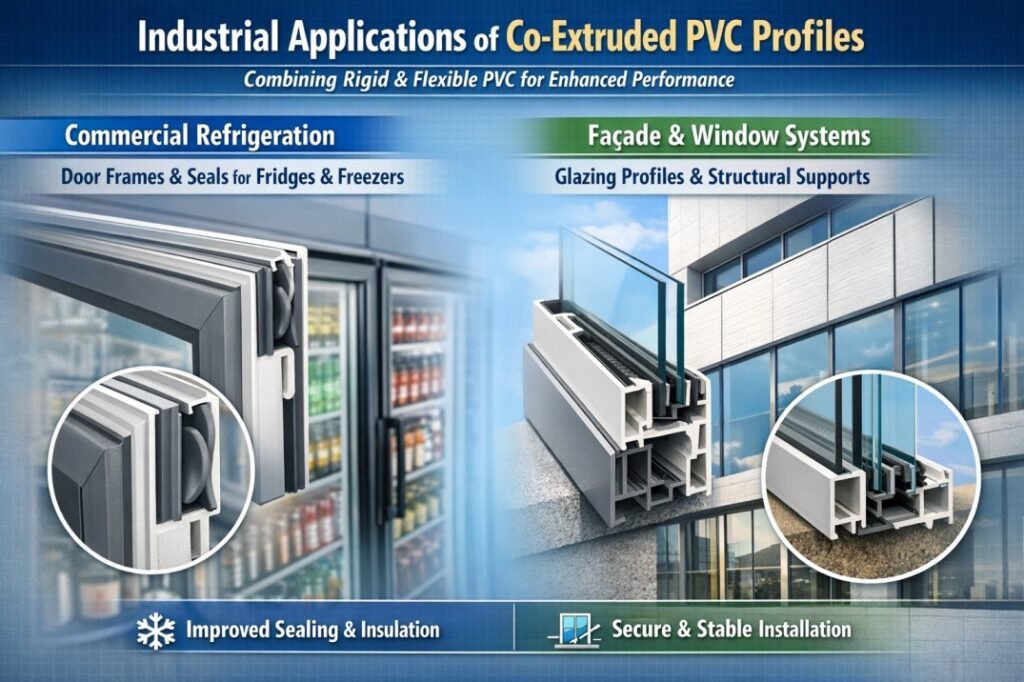

Industrial Applications of Co-Extruded PVC Profiles
PVC co-extrusion profiles are used in different sectors where plastic components need to perform more than one function within the same design. By combining rigid and flexible PVC, these profiles help improve fitting, sealing, and long-term performance in production systems.
Common applications include:
- Commercial Refrigeration
Used in door frames, sealing sections, and protective trims in refrigerators and freezers. The rigid part supports the structure, while the flexible section helps in sealing and insulation. This helps maintain proper closing and reduces air leakage. - Façade and Window Systems
Used in glazing profiles, support channels, and structural sections in façade installations. These profiles help hold glass panels in position and provide stable support under different environmental conditions.
- LED Lighting Systems
Used as support channels and protective housings in LED lighting systems. These profiles are commonly paired with LED diffuser profiles to ensure proper light distribution and clean fitting of components. - Glass Processing and Installation Systems
Used as protective edge profiles and support channels for glass panels during processing, handling, and installation. The rigid section provides support, while the flexible part helps protect edges and improve fitting. - Panel and Frame Systems
Used in panel edges, frame sections, and joining profiles where proper alignment is required. These profiles help maintain structure and ensure correct positioning during assembly. - Edge Protection and Finishing Profiles
Used as edge trims and finishing profiles for panels, sheets, and structural components. These profiles protect exposed edges, improve fitting, and provide a clean and consistent finish in final applications.
PVC Co-Extrusion Profile Technical Specifications
Typical specifications for co-extruded PVC profiles may include the following.
Specification | Details |
Material | Rigid PVC / Flexible PVC |
Manufacturing Process | Plastic Co-Extrusion |
Profile Type | Co-Extruded PVC Profile |
Colour Options | White, Black, Transparent, Custom |
Length | Custom extrusion length |
Application | Industrial manufacturing systems |
Specifications may vary depending on the required profile design and application.

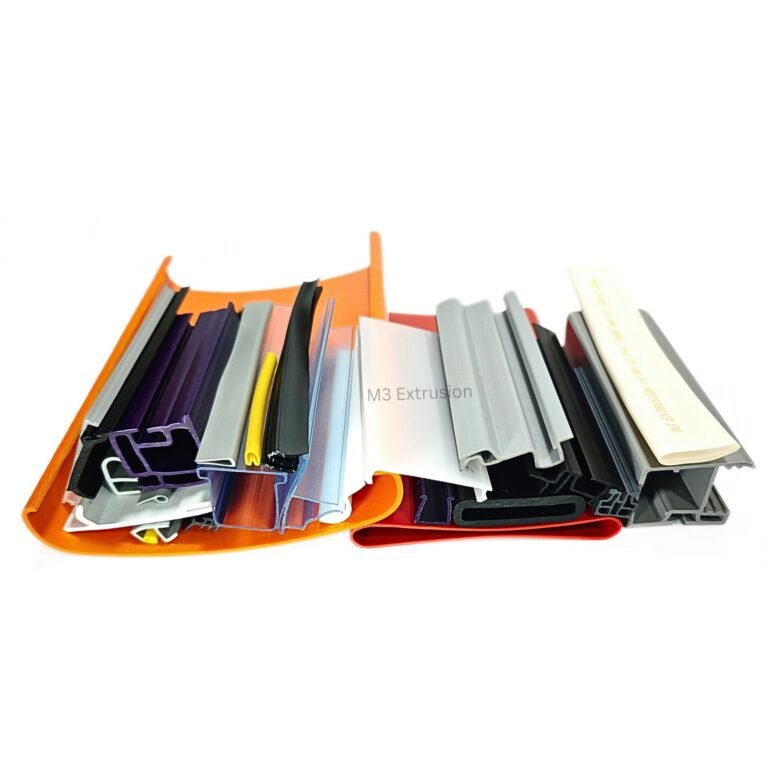

Custom PVC Co-Extrusion Profile Manufacturing
Many industrial products require plastic components designed specifically for their system structure. PVC co-extrusion allows manufacturers to create profiles that integrate multiple material properties in a single extrusion.
Custom manufacturing services may include:
- Cross-section profile development
- Rigid and flexible PVC material combinations
- Custom colour and surface finish options
- Profile dimensions designed for equipment assemblies
- Repeat production for long-term supply
This ensures the profile fits correctly within the final product design.
Why Businesses Prefer PVC Co-Extrusion Profiles
Many manufacturers prefer PVC co-extrusion profiles because they simplify product design and reduce the need for multiple components. Combining rigid and flexible materials in one profile improves assembly efficiency and reduces production time.
These profiles also offer better sealing, protection, and structural support compared to single-material designs. This makes them suitable for applications where durability, fit, and long-term reliability are important.
M3 Extrusion: Your PVC Co-Extrusion Profile Manufacturer
At M3 Extrusion, we manufacture PVC co-extrusion profiles for applications that require consistent quality and reliable performance. With years of experience in plastic co-extrusion, we produce both standard and custom profiles based on technical drawings and production requirements. Our process focuses on maintaining accurate dimensions, proper material bonding, and uniform output across batches to ensure each co-extruded PVC profile fits correctly and performs as expected in long-term use. We work closely with manufacturers to support both development and bulk production needs. You can contact our team to discuss your PVC co-extrusion profile requirements, share technical drawings or profile designs, request sample plastic extrusion profiles, and receive a quotation for bulk manufacturing.
