Over the years, transparent PVC profiles have become immensely popular and are being widely used in machines and equipment to create guards, covers, guide rails, and inspection windows. Not only do they hold parts in place, but they also protect sensitive components while letting users see inside assemblies. This visibility simplifies inspections, improves safety, and makes quality control faster and more efficient.
Unlike metal or solid plastic sheets, custom transparent PVC extrusion profiles allow operators to monitor moving parts, check fluid levels and inspect belts or gears without removing covers, reducing downtime and the risk of mistakes. However, not all profiles are made the same, and choosing the wrong one can lead to poor fit, weak support, or repeated issues during assembly.
Nonetheless, understanding material quality, strength, fit, and batch consistency can help equipment makers select transparent PVC profiles that last and perform reliably.
What Are Transparent PVC Profiles?
PVC stands for polyvinyl chloride. It is a type of plastic that is light, strong, and versatile. It can be shaped by heating and pushing it through a die. This process, called extrusion, creates long profiles in many shapes and sizes.
In machines and equipment, maintaining visibility with PVC profiles becomes much easier when transparent profiles are used. Transparent PVC profiles are clear like glass but much lighter and safer. They are used as guards, covers, windows, or guide rails, helping operators inspect and monitor components without removing panels or covers.

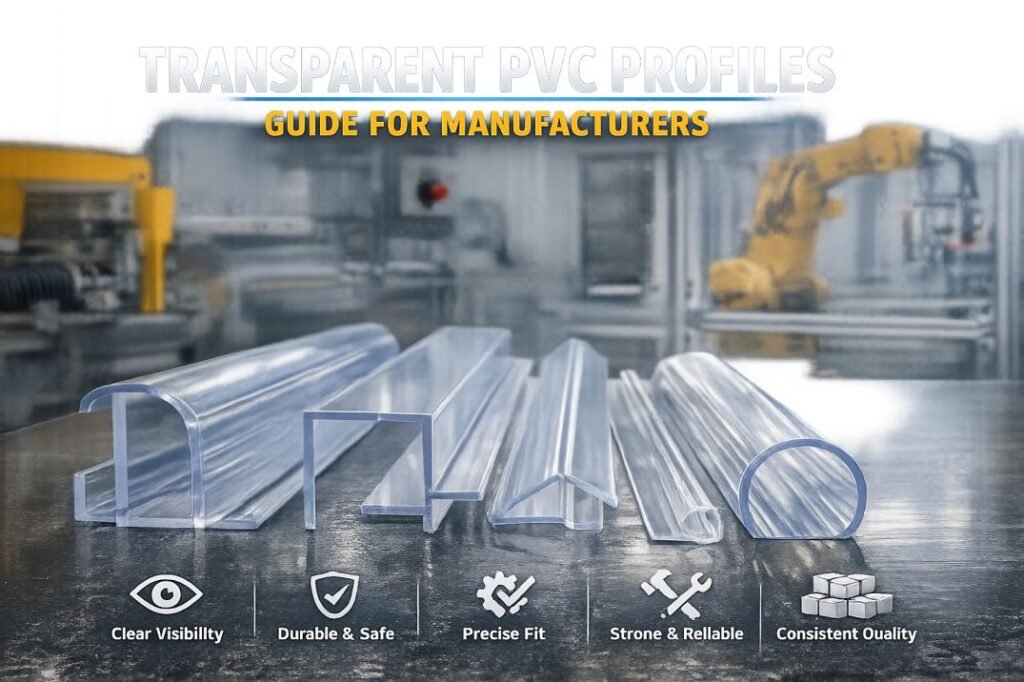

Transparent PVC profiles come in many shapes, from straight or curved to thick or thin sections. They can be simple or custom-designed to fit specific slots or mounts. Equipment makers often cut them to size on site or order long lengths ready for assembly.
Advantages of Using Transparent PVC Profiles
In today’s manufacturing environment, transparent PVC profiles allow operators to monitor moving parts, protect sensitive components, and reduce machine downtime in one fell swoop. Even though they are simple components, they make machines safer, easier to maintain, and more efficient.
Clear View for Inspection
Transparent PVC profiles let users see inside assemblies without removing covers. This simplifies visual checks and makes safety inspections faster.
Light Weight
PVC is much lighter than glass or metal. This makes profiles easier to handle, move and install. It also reduces stress on moving parts.
Resists Moisture and Corrosion
PVC does not rust and resists many chemicals. It holds up well in wet or humid factory environments.
Safer than Glass
Glass can break into sharp pieces. PVC remains in one piece, reducing the risk of cuts or accidents.
Cost-Effective
PVC is generally less expensive than glass or metal. It offers a clear, durable solution without high material costs.
How to Choose the Right Transparent PVC Profile
Picking the right transparent PVC profile takes careful thought. These profiles are simple parts, but they play a key role in the performance and safety of your machines. Choosing the wrong one can slow assembly or cause repeated problems across multiple units.
Material Clarity and Quality
The transparency of a PVC profile is its most important feature. Clear profiles let users inspect or monitor parts without disassembly, and the right quality ensures that this clarity lasts over time.
- High Clarity: Choose material that stays clear after cutting, bending or exposure to light. Low-quality PVC may turn cloudy or yellow, reducing visibility.
- Smooth, Even Surface: Profiles should have an even finish with no lines, bubbles or haze. Uneven surfaces can distort visibility and make parts look uneven or defective.
- Choose Profiles Resistant to Discoloration: When selecting transparent PVC profiles, pick ones that are rated to resist yellowing or clouding over time. Check product specifications or request samples to ensure they maintain clarity under light, heat and routine cleaning.
Focusing on material clarity and quality guarantees that your transparent PVC profiles remain easy to see through, durable, and professional-looking throughout their life in the machine.
Profile Strength and Durability
PVC profiles need to handle the mechanical demands of your equipment. While PVC is lighter than metal, it still needs to maintain shape, resist impact, and endure repeated use.
- Wall Thickness: Choose transparent PVC profiles with walls thick enough to support the loads in your equipment. Check the expected pressure or weight and match it to a profile that resists bending or flexing.
- Shape Matters: Look for profiles with ribs, bends or reinforced designs. Select shapes that naturally improve stiffness and reduce the chance of bending under load.
- Impact Resistance: Equipment parts may knock against the profile. Make sure the profile can survive these impacts without cracking or breaking.
Selecting strong and durable profiles ensures long-term reliability and reduces the risk of warping, bending, or breakage during machine operation.
Safety and Protection Needs
When selecting a transparent PVC profile, it is important to consider how it protects both the machine and the operator. Profiles serve as barriers that prevent accidental contact with moving or sensitive parts.
- Protect Key Components: When choosing a transparent PVC profile, check which parts of the machine need protection. The profile should cover belts, gears, motors, or other critical areas without interfering with operation.
- Prevent Damage During Use: Select profiles that can withstand regular contact, accidental bumps or vibration. The right profile will shield components from harm while staying durable and clear.
- Enhance Operator Safety: Ensure profiles prevent hands, tools, or clothing from reaching dangerous areas. Well-designed PVC panels reduce the risk of injury during operation or maintenance.
Prioritising safety and protection ensures that the transparent PVC profile keeps both equipment and operators safe while maintaining proper functionality and clear visibility.
Dimensions and Fit
A profile must match the design specifications of your machine. Even small differences in width, height, or length can cause fitting issues that slow assembly or require adjustments.
- Check Width and Height: Make sure the transparent PVC profile fits the slot, channel, or mounting area precisely. Incorrect dimensions can prevent proper installation or create gaps.
- Length and Tolerance: Transparent PVC profiles must be long enough for the assembly. Check that tolerances are tight enough to maintain a proper fit but loose enough to allow easy installation without forcing parts together.
- Surface Smoothness: Rough edges or uneven surfaces can interfere with moving parts or make tight fits difficult. Cleanly finished profiles reduce friction and make assembly easier.
Ensuring the right dimensions and fit keeps installation smooth, reduces adjustments, and prevents wear or damage to both the profile and the machine parts.
Batch Quality and Consistency
When ordering many profiles, all pieces should be uniform. Any variation between pieces can lead to repeated assembly problems, wasted time, or uneven final products.
- Uniform Shape: Every piece should have the same shape and size. Differences in shape can cause misalignment or force changes during installation.
- Colour and Clarity Match: All transparent PVC profiles in a batch should look the same. One clear piece mixed with slightly cloudy or discoloured pieces can make the finished machine appear inconsistent or low quality.
- Even Surface Finish: The finish should be consistent across all pieces. Rough spots or uneven texture can catch parts, interfere with assembly, or reduce visual clarity.
Focusing on batch quality and consistency ensures that all units in a bulk order fit correctly, perform reliably and maintain a professional and uniform appearance across every machine.
Frequently Asked Questions
Why choose transparent PVC profiles over glass or metal?
Transparent PVC profiles are lighter, safer, and lower in cost. They let you see through a panel without adding much weight. They do not rust like metal and do not break into sharp pieces like glass.
Will transparent PVC profiles stay clear over time?
High-quality transparent PVC profiles that are made well and cut correctly can stay clear for years. Low-quality profiles or rough-cut pieces may become cloudy after use or cleaning.
Can transparent PVC profiles handle heavy loads?
Some transparent PVC profiles can, but not all. You must match the profile shape and thickness to the load it will carry. Thicker walls and strong shapes add strength.
Do transparent PVC profiles fit all machines and equipment?
No. Transparent PVC profiles must be chosen to fit your machine’s design. You need to check width, height, and length for your specific use.
Is it safe to order transparent PVC profiles in bulk without testing first?
It is best to test samples of transparent PVC profiles first. Testing small pieces helps ensure fit, clarity, and strength meet your needs. This can save problems when you order many pieces.
Can transparent PVC profiles be bent to shape?
Yes, transparent PVC profiles can be heated and bent. Not all bends are the same. You must heat them correctly and use the right tools. Poor bending can cause cloudiness or weak points.
Can transparent PVC profiles be drilled or cut easily?
Yes, transparent PVC profiles can be cut and drilled with normal shop tools. Make sure you use the right blade and a slow speed to avoid chipping.
Do transparent PVC profiles scratch easily?
Transparent PVC profiles are more prone to scratches than glass or metal. Pick profiles with a smooth surface and take care when cutting or assembling them to keep them clear and unmarked.
Conclusion
Transparent PVC profiles may seem like simple components, but they play a critical role in protecting parts, enabling inspections and keeping machines running smoothly. Equipment makers should focus on material clarity, strength, dimensions, safety and batch consistency. Paying attention to these factors helps avoid rework, reduces errors and ensures smooth assembly.
